Dulmarka alaabta

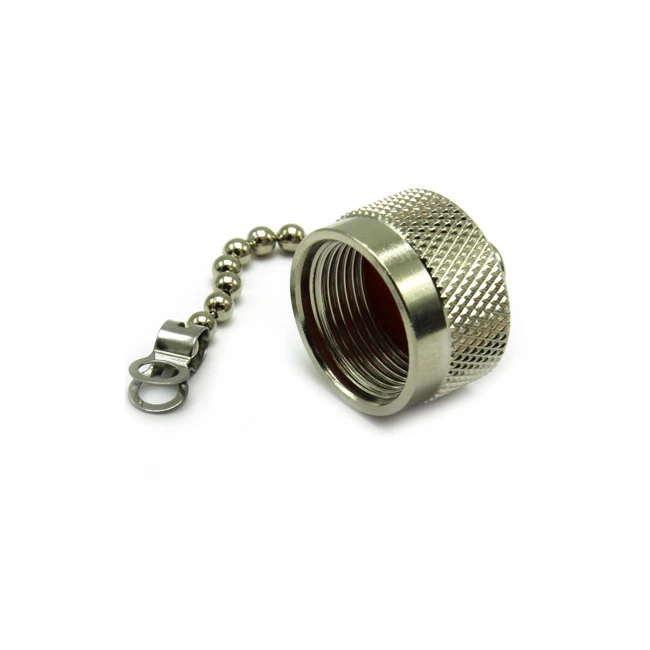

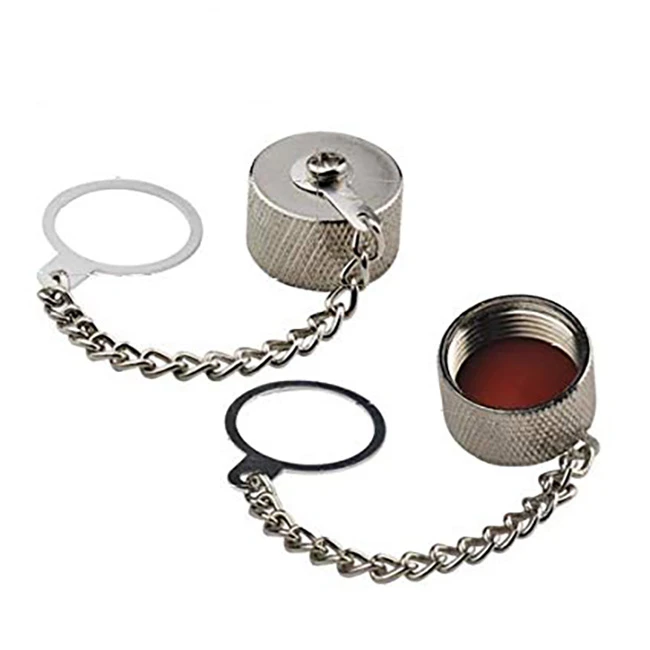

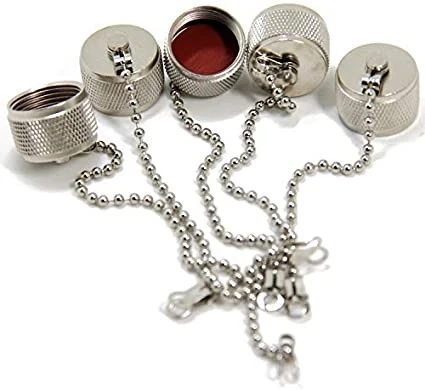

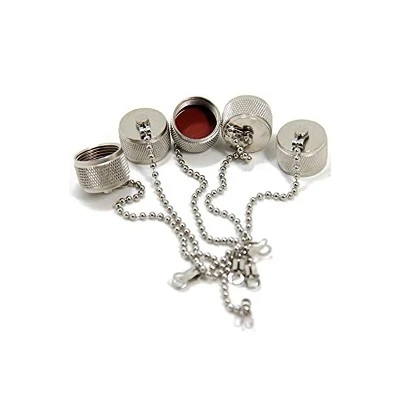

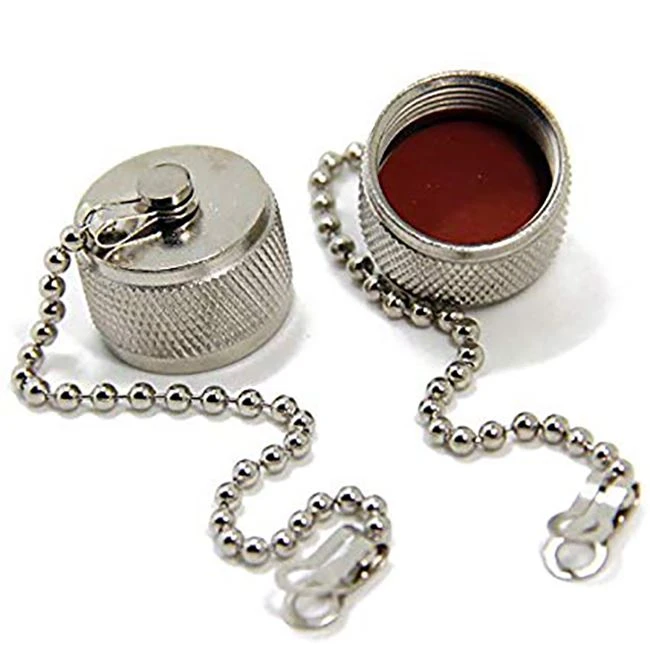

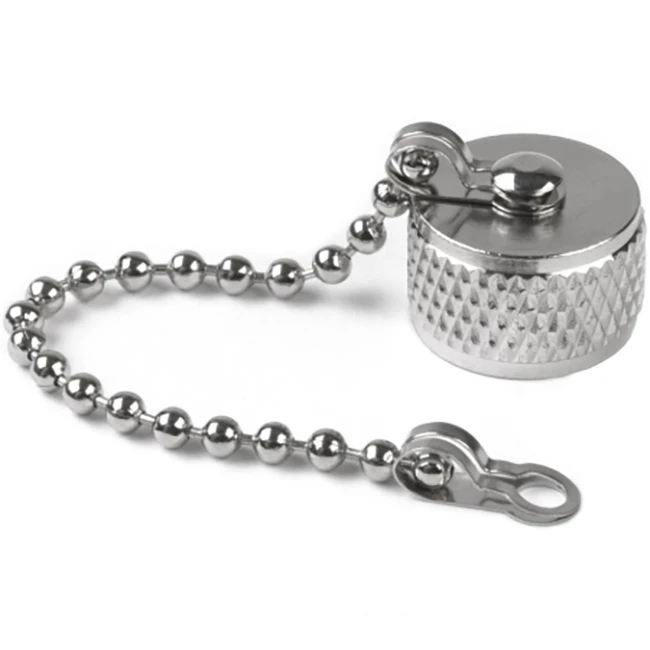

Qaabka N koofiyadda dheddigga waa N CAP. Walaaca gaarka ah ee dekedaha isku xirka RF coaxial waa inay u nugul yihiin faragelinta qashinka iyo soo-gaadhista deegaanka inta lagu jiro gaadiidka, dayactirka, ama kaydinta. Qalabka RF ee loo isticmaalo wax kasta laga bilaabo qalabka saliida iyo maraakiibta ciidamada badda ilaa munaaradaha gacanta iyo diyaaradaha, hubinta in dekedaha RF ay yihiin kuwo sugan oo nadiif ah ayaa muhiim ah. Koofida boodhka dheddigga ee N waxaa loogu talagalay in lagu hubiyo daacadnimada dheddigga iyo, inta badan, dekedaha coaxial lab.
Koronto
|
Caqabada |
50Ω |
|
Xaddiga Soo noqnoqda |
0-6GHz |
|
Voltage shaqeeya |
In ka yar ama la mid ah 1000V |
|
VSWR |
In ka yar ama la mid ah 1.15@2.5GHz, In ka yar ama la mid ah 1.25@6GHz |
|
Iska caabinta dahaarka |
Ka weyn ama la mid ah 5000mΩ |
|
U adkaysiga Voltage |
2500V |
|
Iska caabinta Xiriirka Xarunta |
In ka yar ama la mid ah 1mΩ |
|
Iska caabinta Xiriirka Dibadda |
In ka yar ama la mid ah 1mΩ |
|
Ciidanka Haynta Xidhiidhka Dhexe |
Ka weyn ama la mid ah 0.56N |
|
Waarta |
500 wareeg |
Qalabka iyo Dajinta
| N CAP |
Qalab |
Duubista |
|
Jirka |
Naxaas |
Cu-Sn-Zn3 |
|
Daareeyaha xarunta |
Foosfoor naxaas ah |
Ag |
|
Isku-dhafka Nut |
Naxaas |
Cu-Sn-Zn3 |
|
O - xidhidhiyaha |
Rubber Silikoon ah |
|
|
Insulator |
PTFE |
|
|
Qalab |
Duubista |
|
|
Jirka |
Naxaas |
Cu-Sn-Zn3 |
|
Daareeyaha xarunta |
Foosfoor naxaas ah |
Ag |
Deegaanka
|
Kala duwanaanta heerkulka |
-65 darajo ~ +165 darajo |
|
Qoyaanka |
＜95％ |
|
milixda{0}}Tijaabada ceeryaamo |
96h |
Zhenjiang Tongda Electronics Co., Ltd. waa soo saaraha xirfadeed ee N koofiyada dumarka, oo ku siinaya alaab adiga kugu habboon.
